Dewatering bags PP woven geotextile filter bags

Dewatering bags PP woven geotextile filter bags
Warranty Period: 3 years
Material: Polypropylene woven geotextile
Uses: Sludge dewatering, embankment and bank protection
WhatsApp: +8618053144579
Email: sales@dingrungeosyn.com

Product Description

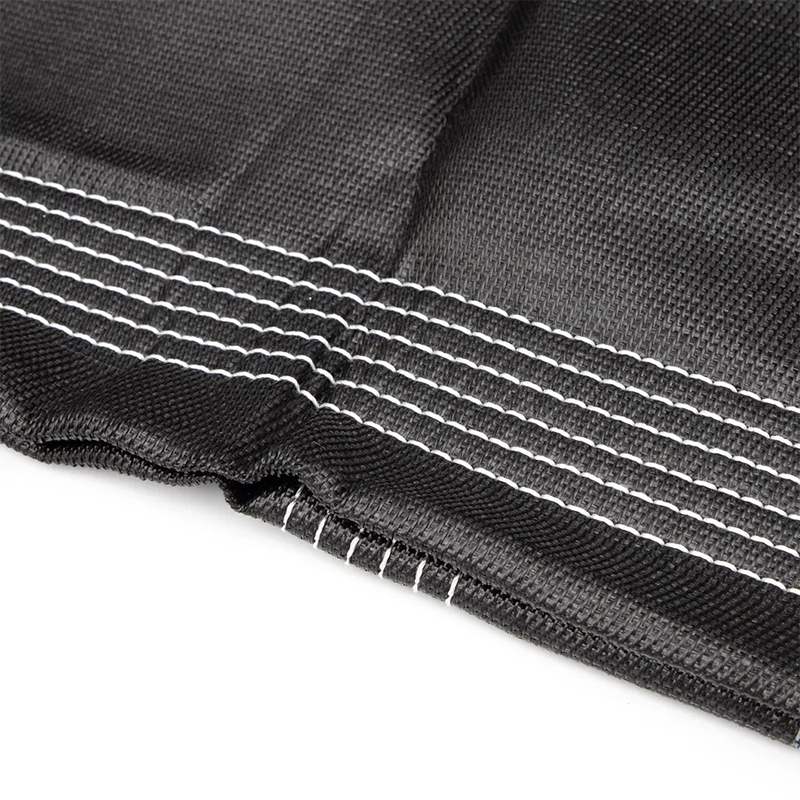

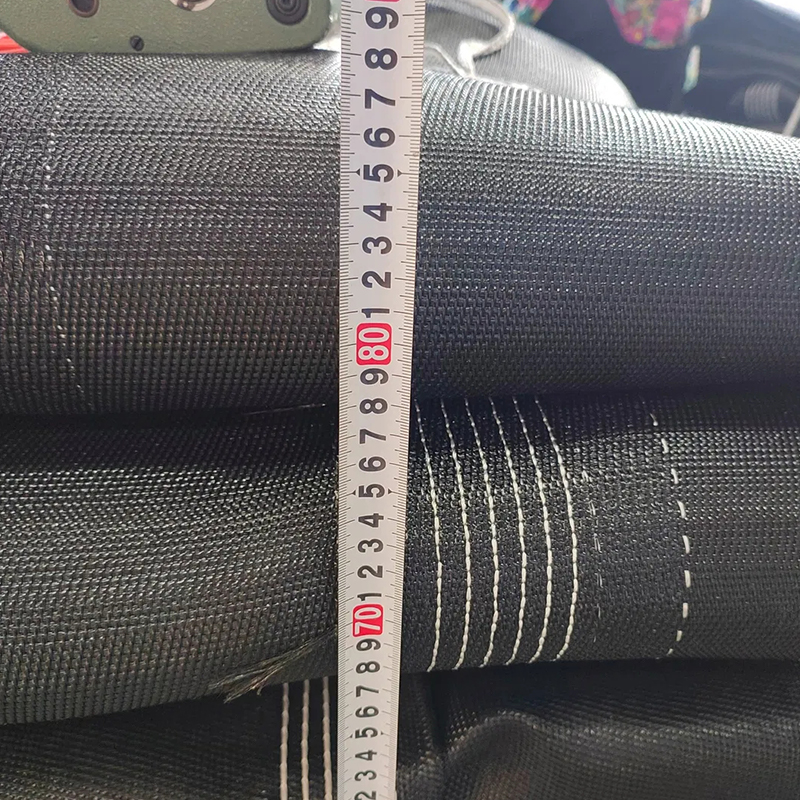

Geotextile bags are tubular bags made of high-strength polypropylene geotextile. They are permeable to water but leak-proof, and when used with a mud pump to fill with sludge or sediment, they dehydrate and solidify naturally by gravity, resulting in an environmentally friendly solution with no secondary pollution.


Application Scenarios:

Dredging and dewatering of sludge from rivers, lakes, and ports

Dewatering and volume reduction of sludge from municipal, paper, and chemical industries

Solid-liquid separation of tailings and mining mud

Land reclamation and silt consolidation along coastal areas


Product Showcase

05土工袋_02

05土工袋_04

05土工袋_06

Technical Table

Item

Unit

Technical Parameter

Tube 500

Tube 750

Tube 1000

Breaking strength

MD

KN/m >=

70

120

200

CD

KN/m >=

90

120

200

Elongation of break

MD

%<=

20

20

20

CD

%<=

10

10

10

Sewing Tensile strength

>=%

80

80

80

Bursting Strength(CBR)

KN>=

8

14

18

Equivalent opening size(O90)

mm

0.2-0.6

0.2-0.6

0.2-0.6

Permeability(Q50)

L/m2/s>=

20

13

15

UV-resistance(500HRS strength retention)

%>=

90

80

80


Warehousing & Shipping

05土工袋_08
