Continuous filament spunbonded needle-punched nonwoven geotextile

Continuous filament spunbonded needle-punched nonwoven geotextile
Material:PP & PET
Type:Non-Woven Geotextiles
Model Number:100gsm-1500gsm
Application:Separation/filtration/drainage/reinforcement/protection/liquid barrier
WhatsApp: +8618053144579
Email: sales@dingrungeosyn.com

Product Description

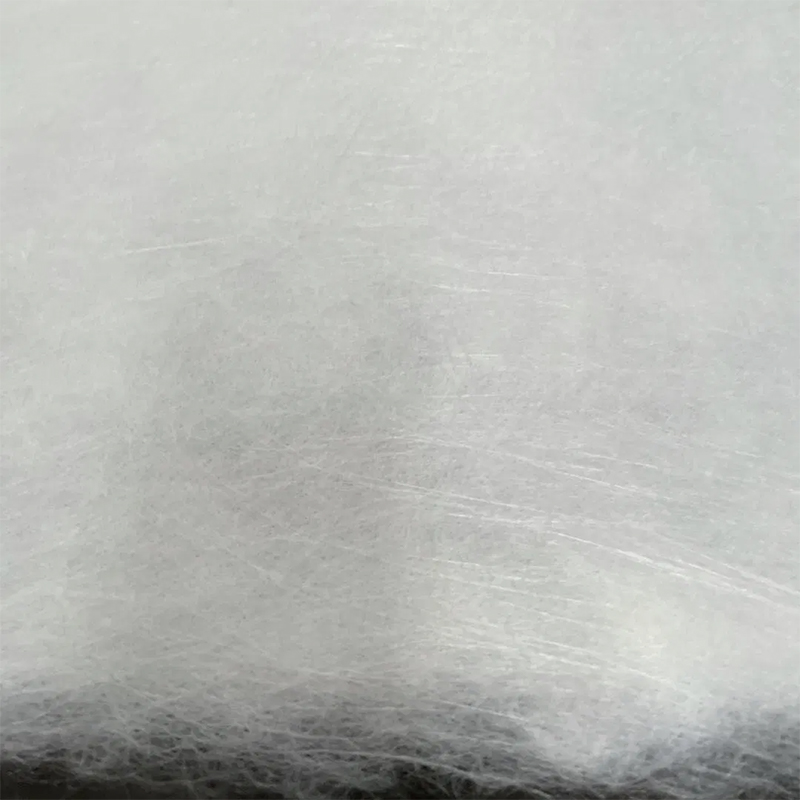

This product is a high-strength non-woven geotextile made from polyester PET filament through spunbond and needle punching processes.

Features: high tensile strength, tear resistance, aging resistance, good water permeability, acid and alkali resistance, long service life.


Main applications

Highway and railway subgrade isolation, filtration, drainage, reinforcement

Water conservancy embankments, rivers, slope protection, filtration, and erosion prevention

Landfill site, anti-seepage membrane protection layer for sewage treatment, drainage filter

Airports, municipal engineering, soft foundation treatment and reinforcement, and drainage


Product Showcase

02土工布_02

02土工布_04

02土工布_06

Technical Table

Item

Value

Specification

100

150

200

300

400

500

600

800

Thickness mm

0.8

1.2

1.6

2.2

2.8

3.4

4.2

5.5

Longitudinal and transverse rupture strength(KN/M)

4.5

7.5

10.0

15.0

20.0

25.0

30.0

40.0

Intensty corresponding to the standard vertical and horizontal elongation(%)

40~80

CBR bursting strength(KN)

0.8

1.6

1.9

2.9

3.9

5.3

6.4

7.9

Vertical and horizontal tear(KN)

0.14

0.21

0.28

0.42

0.56

0.70

0.82

1.10

Sieve size O(mm)

0.05~0.20

Vertical Pemeability Coefficient

K*(10-1~10-3) K=1.0~9.9cm/s

Width Variation %

-0.5

Deviation of mass per unit area

-5

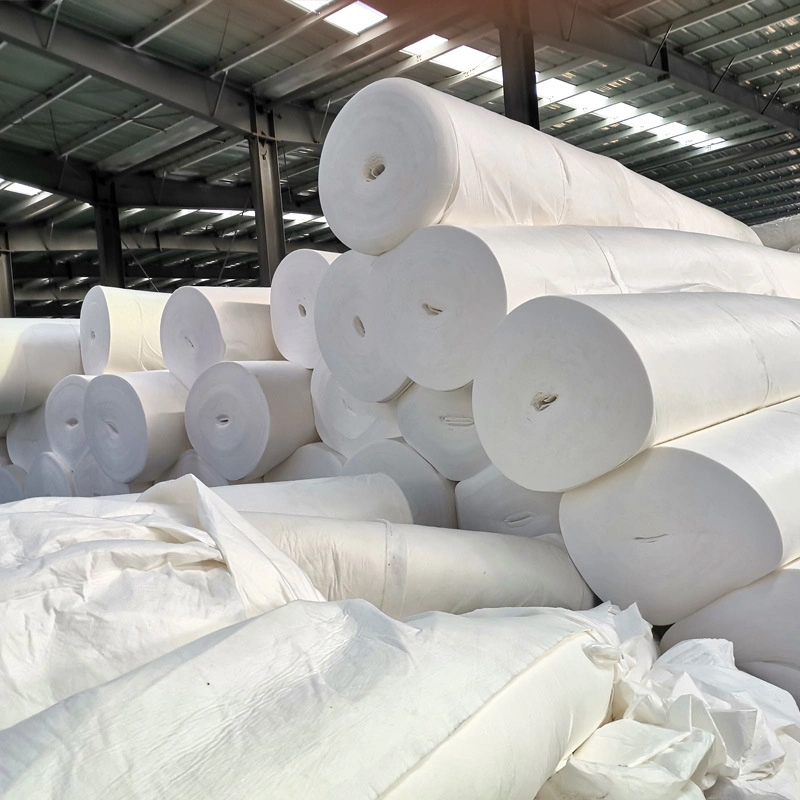

Warehousing & Shipping
