Hot wedge welding machine

Hot wedge welding machine
Name: Geomembrane Welding Machine
Warranty Period: 1 year
Use: Suitable for welding HDPE, PP, PVC, and other materials.
WhatsApp: +8618053144579
Email: sales@dingrungeosyn.com

Product Description

The geomembrane welding machine is mainly used for on-site splicing, sealing, and anti-seepage of geomembranes, welding the membrane material into a whole to ensure no water leakage or cracking; Common uses:

Anti leakage welding of landfill sites and sewage treatment tanks

Welding of anti-seepage membranes for reservoirs, reservoirs, and water channels

Welding of membranes for fish ponds and aquaculture ponds

Anti seepage construction of tailings pond and chemical pond

Welding of waterproofing membranes for subways, basements, and roofs

Product Showcase

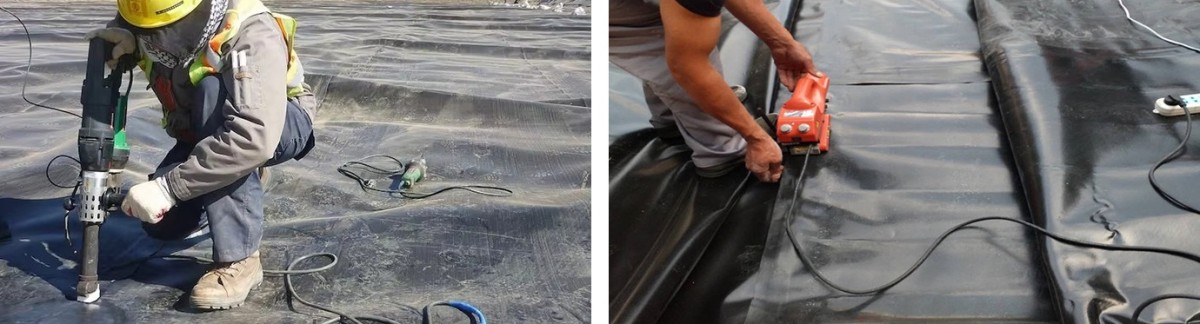

11焊接机_02

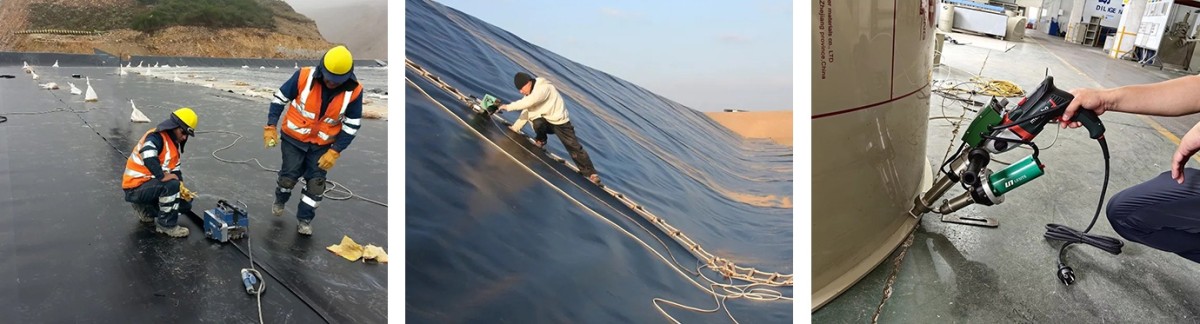

11焊接机_04

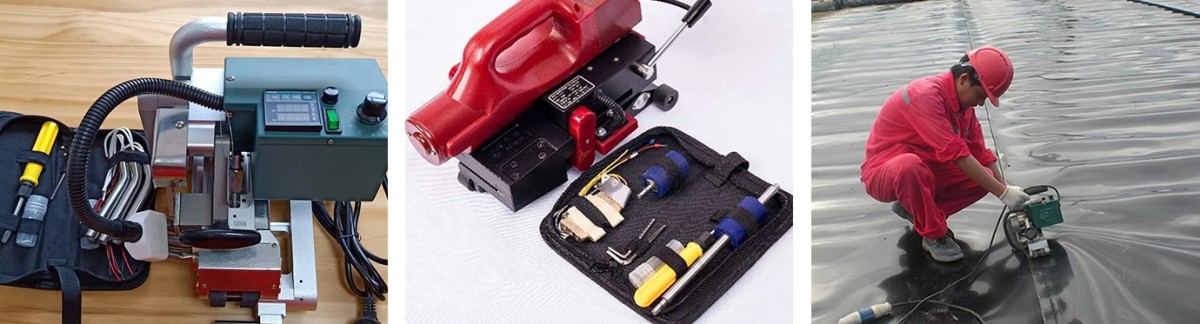

11焊接机_06

Technical Table


Voltage

220V/110V

Frequency

50/60Hz

Power

1800W

Welding Speed

0.5-5 m/min

The temperature of Heating up

0~450°C

The thickness of welding material

1.0mm~3.0mm

Welding width

15mm×2

Interior Cavity

15mm

Seam strength

≥85% base material

Overlap width

12cm

Weight

13kg

Insulation class

class II


SWT-NS900 Parameter Settings

Reference Speed

Reference Temperature

Reference Pressure Value (When upper and lower pressure roller in 0 pressure state)

HDPE 1.0mm

3.0-4.5

380-430

Counterclockwise adjustment is recommended at 4

HDPE 1.5mm

2.5-4.0

380-430

Counterclockwise adjustment is recommended at 3

HDPE 2.0mm

2.0-3.5

380-430

Counterclockwise adjustment is recommended at 2

HDPE 3.0mm

1.5-2.5

380-430

Clockwise adjustment is recommended to be 1-2
