Name: Warp Knitted Polyester Geogrid Use for Embankment and Water Conservancy Projects
SKU: 0

Contact



Warp Knitted Polyester Geogrid Use for Embankment and Water Conservancy Projects

Color: Black
Type: Geogrid
Width: 1-6 meters
Applications: Road construction | Soft soil reinforcement

Product Description

Geogrid is mainly used for reinforcement, strengthening, stabilization, improving soil bearing capacity, preventing settlement, and cracking.

Main applications:

Highways, railways, airport runways: reinforcing roadbeds, reducing settlement, and preventing reflective cracks

Embankment, retaining wall, slope: reinforced and stable, anti slip slope, anti collapse

Soft soil foundation and backfill engineering: improving bearing capacity and reducing uneven settlement

Bridge piers and culverts on both sides: reduce settlement and prevent jumping vehicles

Mining and river slope protection: soil stabilization and erosion prevention

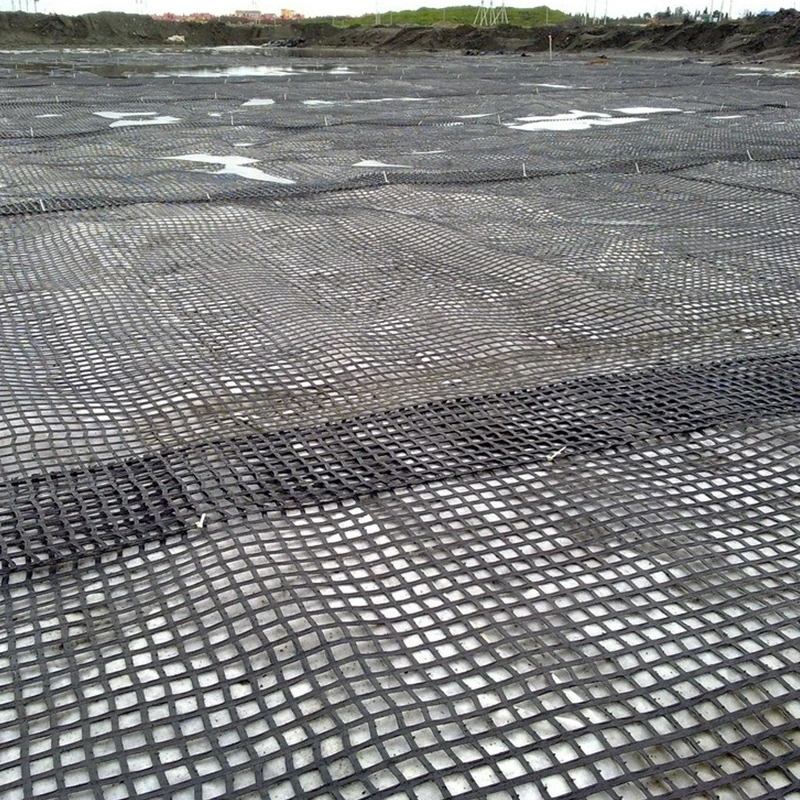

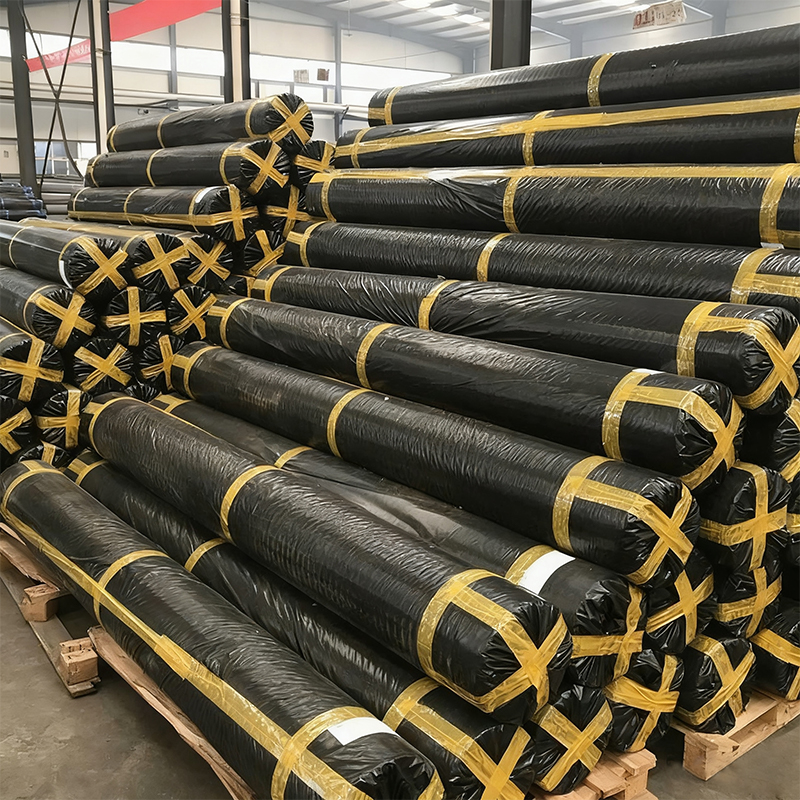

Product Showcase

Technical Table

Specifications	GSJ30-30	GSJ35-35	GSJ50-50	GSJ80-80	GSJ100-100	GSZ125-125	GSZ150-150
Limit tensile strength ( MD or TD)kn/m	≥30	≥35	≥50	≥80	≥100	≥125	≥150
The elongation at nominal tensile strengch ( MD or TD )%	≤13	≤13	≤13	≤13	≤13	≤14	≤14
The elongation at 2% nominal tensile srengh ( MD or TD )kn/m	≥10	≥12	≥17	≥28	≥35	≥43	≥52
The tensile force at 5% elongation ( MD or TD )kn/m	≥20	≥24	≥34	≥56	≥70	≥86	≥104
