Non-woven geotextile bags Geotextile filter bags

Non-woven geotextile bags Geotextile filter bags
Color: White, Black, Green
Size, Printing: Customizable
Technology: Needle punching process
WhatsApp: +8618053144579
Email: sales@dingrungeosyn.com

Product Description

Geotextile bags are mainly used for river regulation, dam protection, slope reinforcement, flood control and emergency rescue projects. By relying on the characteristics of the bag body, such as water permeability, soil impermeability, high strength, erosion resistance, and ecological greening, soil stability and water and soil conservation can be achieved.

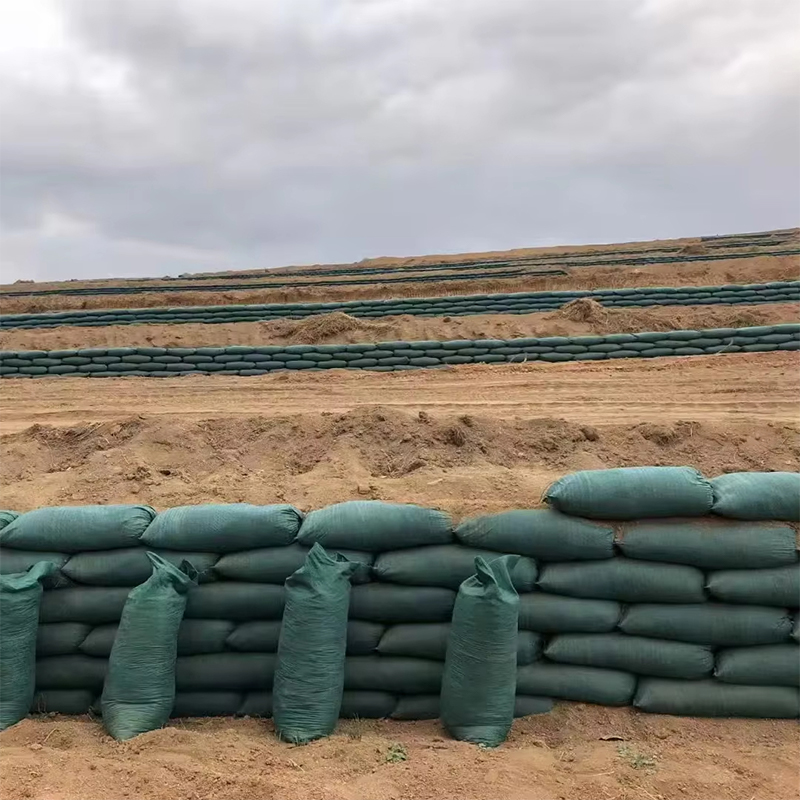

Rivers, embankments, and bank protection: slope protection and embankment stabilization, resistance to water flow erosion, prevention of embankment collapse, and consideration of ecological greening.

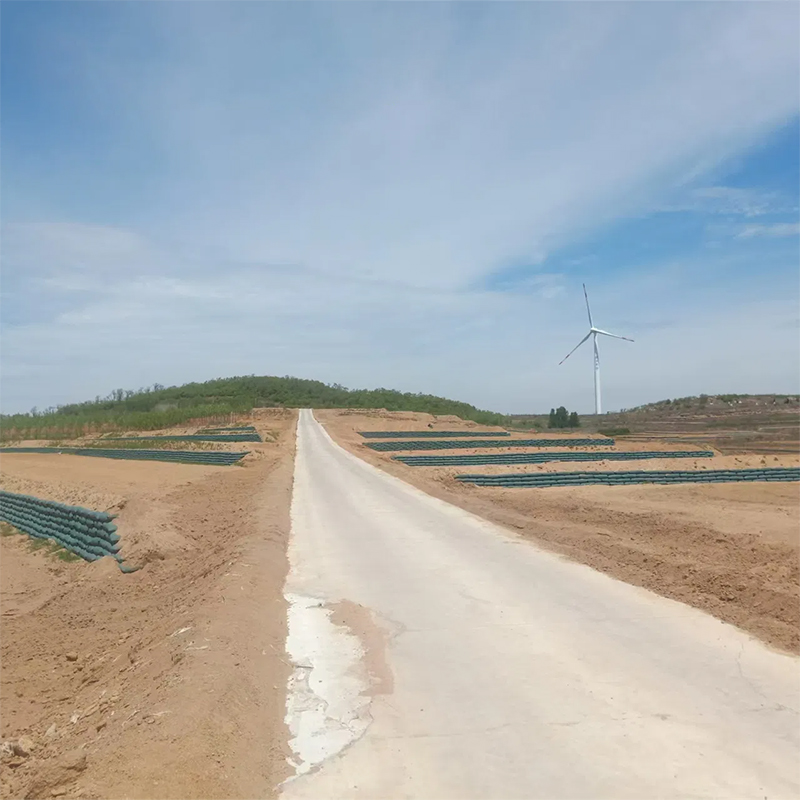

Highways, railways, and mountain slopes: reinforce slopes, prevent soil erosion and landslides, and can be restored by planting grass.

Retaining walls, roadbed backfilling: flexible retaining walls, reinforced stability, and reduced uneven settlement.

Flood prevention and emergency rescue, temporary cofferdam: rapid installation of soil and dam, emergency water blocking, reinforcement of dangerous sections.

Mine restoration and ecological governance: soil stabilization and water retention, promoting vegetation growth, and restoring the ecological environment.

Product Showcase

05土工袋_02

05土工袋_04

05土工袋_06

Technical Table

Item

Unit

Technical Parameter

Tube 500

Tube 750

Tube 1000

Breaking strength

MD

KN/m >=

70

120

200

CD

KN/m >=

90

120

200

Elongation of break

MD

%<=

20

20

20

CD

%<=

10

10

10

Sewing Tensile strength

>=%

80

80

80

Bursting Strength(CBR)

KN>=

8

14

18

Equivalent opening size(O90)

mm

0.2-0.6

0.2-0.6

0.2-0.6

Permeability(Q50)

L/m2/s>=

20

13

15

UV-resistance(500HRS strength retention)

%>=

90

80

80

Warehousing & Shipping

05土工袋_08
