Full Range of Geomembrane Sizes and Thicknesses

Full Range of Geomembrane Sizes and Thicknesses
Origin: Shandong, China
Material: HDPE (High-density polyethylene)
Application: Impermeable barrier and isolation
Delivery time: 3-7 days after payment | Subject to quantity
WhatsApp: +8618053144579
Email: sales@dingrungeosyn.com

Product Description

HDPE geomembranes have two core functions: impermeability and isolation.


They are mainly used in the following five major areas:

Environmental protection and pollution control: "Leak-proof liners" for landfills, sewage treatment ponds, and hazardous waste disposal sites.

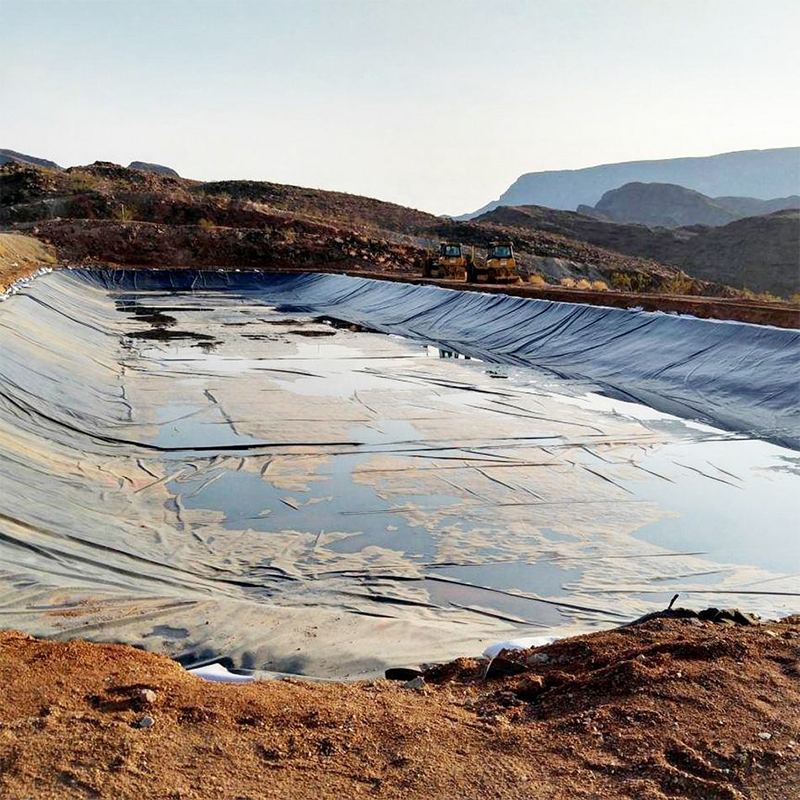

Water conservancy and water saving: "Impermeable linings" for reservoirs, artificial lakes, and irrigation canals.

Agriculture and aquaculture: "Impermeable sealing layers" for fish and shrimp farming ponds and biogas digesters.

Mining and chemical industry: "Isolation barriers" for tailings ponds, heap leaching ponds, and chemical evaporation ponds.

Infrastructure moisture protection: "Waterproof and moisture-proof layers" for basements, tunnels, and roadbeds.

Product Showcase

详情_02

详情_04

详情_06

Technical Table

Item

Specification

Thickness mm

0.30

0.50

0.75

1.00

1.25

1.50

2.00

2.50

3.00

Density g/cm3

≥0.940

Tensile yield strength(TD/MD) N/mm

≥4

≥7

≥10

≥13

≥16

≥20

≥26

≥33

≥40

Tensile Strength at Break(TD/MD) N/mm

≥6

≥10

≥15

≥20

≥25

≥30

≥40

≥50

≥60

Elongation at Yield ( TD/MD) %

-

-

-

≥11

Elongation (TD/MD) %

≥600

Angle Tear Load ( TD/MD) N

≥34

≥56

≥84

≥115

≥140

≥170

≥225

≥280

≥340

Puncture Strength N

≥72

≥120

≥180

≥240

≥300

≥360

≥480

≥600

≥720

Carbon Black Content %

2.0~3.0

Garbon Black Dispersion

No more than 1 out of 10 data at level 3, not allowed at levels 4 and 5

Oxidation induction Time min

≥60

Embrittlement Temperature lmpact Performance

Pass

Water Vapor Permeability Coefficient g.cm/(cm2.s.Pa)

≤1.0 x 10-13

Dimensional Stability %

±2.0

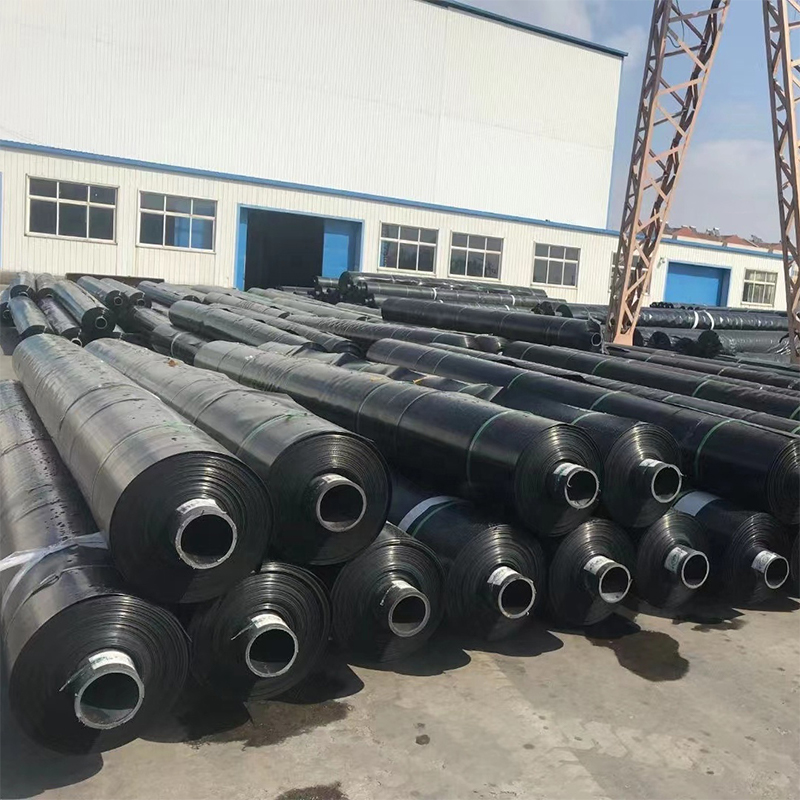

Warehousing & Shipping

详情_08
